30W, MAX, 300*300MM

30W MAX 200*200MM

30W, RAYCUS, 300*300MM

All three models Fiber Laser Marking Machine in stock in Los Angeles, express to you address within 7 days.

1. Description

DIHORSE  Desktop Fiber Laser Marking Machine best suits small-sized, easy-to-move workpiece marking with logo, icon, QR code, bar code, regular and irregular flow number, etc.  and can be integrated into the assembly line. It encompasses an advanced third-generation solid fiber laser generator, high-quality galvanometer, field lens, and industrial PC and software, etc.

With four wheels on the feet of the desk, you can easily and smoothly move it to anywhere you want.

You can also replace the fixed marking head with a flexible handheld type to achieve the marking of large or heavy objects which can not move.

Add a rotary attachment, you can achieve the marking work on the round and small objects.

This marking machine can also mark on bulbs if you add our bulb marking attachment.

In addition to working tables with different working sizes,  there are 3 laser source options to satisfy different budgets, among which JPT MOPA laser source can work for color marking.

2. Features

• integrated design: compact structure, small floor area;
• Wide application: handle both metal and non-metal materials;
• Standout performance: consistent marking quality with high speed(up to 7000mm/s); 2-3 times higher than traditional marking;
• Long Lifetime: advanced laser generator, more than 100,000h;
• Low consumption: Electro-optic conversion rate up to 30%, power consumption lowered by 3-10 times compared with YAG laser; environment-friendly and energy-saving;
• Easy operation: software pre-installed and machine parameters pre-set, plug and mark.

3. Parameters

Laser Power	30W
Power Supply Requirements	110V
Laser Wavelength	Laser Wavelength: 1064nm
Marking Depth	Marking Depth: ≤0.4mm
Marking Speed	0-7000mm/s
Marking Lines	1-10 lines
Minimum Character	0.15mm
Response Time	0.5ms
Repeatability Accuracy	±0.002mm
Resolution Ratio	0.01mm
Mini. line Width	0.01mm
Operation System	Microsoft Windows 7/8/10/XP
Control Software	EZCAD Control Software
Marking Content	Text, pattern, date, bar code, etc.
Graphic Format Supported	BMP, JPG, TGA, AI,DXF, PNG, TIF, DXF, DST, etc.
Unit Power	1.2KW
Beam Diameter	<30um
Cooling Mode	Air Cooling
Frequency of pulse	20-100 KHz
Laser Module Life	>100000 hours
Operation Temperature	32-104℉ (0-40℃)
Certificate	CE & FDA Certificate

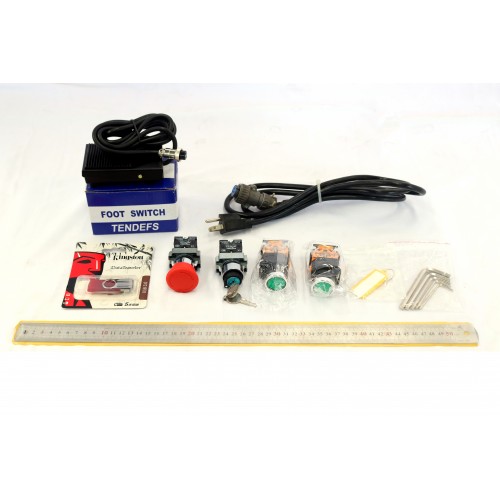

4. Standard Packing List

30W Fiber Laser Machine	1
Replaceable switch	4
USB flash disk	1
Power cable	1
Pedal	1
Ruler	1

Notice:

1. Free return only valid for non-artificial quality problems within 10 days after you receiving the machine;

2. The whole machine warranty is 2 years starting from production time. During the warranty period, any fault caused by non-artificial reason we will maintain it freely;

3. During the warranty period, the seller offers free repair or spare parts, and the buyer should afford round-trip courier charges;

4. Out of warranty period, the buyer should afford round-trip courier charges and spare parts fees.

5. Main Parts Details

Galvo lens
